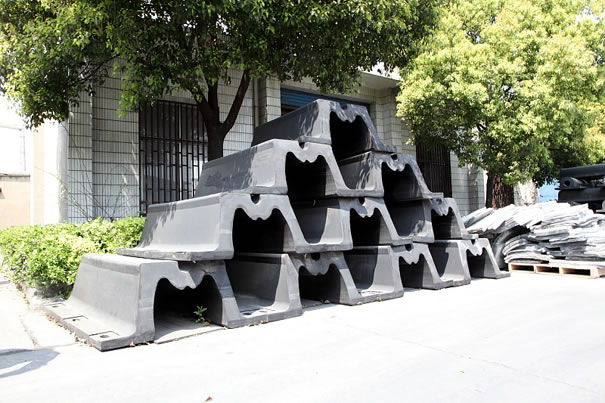

M type marine rubber fender is typically mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing, thus preventing ships and docks from being damaged.
Characteristics of Rubber Fender
The marine fender offers high energy absorption performance and low reaction force. With rational structure, it is easy for installation and maintenance.
Specifications of M Type Marine Fender
Type | h | s | w | t | b | m | d | e | f | g | k | i | r | q |
M300 | 300 | 396 | 60 | 33 | 204 | 140 | 750 | 640 | 140 | 70 | 35 | 105 | 24 | 230 |
M400 | 400 | 528 | 80 | 44 | 272 | 150 | 1000 | 870 | 165 | 82 | 41 | 120 | 30 | 290 |
M500 | 500 | 660 | 100 | 55 | 340 | 160 | 1250 | 1090 | 180 | 94 | 46 | 140 | 33 | 325 |
M600 | 600 | 776 | 120 | 66 | 408 | 170 | 1500 | 1310 | 195 | 100 | 50 | 160 | 36 | 430 |
M800 | 800 | 1035 | 160 | 88 | 544 | 180 | 2000 | 1740 | 270 | 136 | 68 | 260 | 48 | 430 |
Length
Unit: mm
Type | L=1000 | L=1500 | L=2000 | |||||||||
L1 | C | P | n | L1 | C | P | n | L1 | C | P | n | |
M300 | 1150 | 140 | 870 | 1 | 1650 | 140 | 685 | 2 | 2150 | 137.5 | 625 | 3 |
M400 | 1200 | 150 | 900 | 1 | 1700 | 150 | 700 | 2 | 2200 | 147.5 | 635 | 3 |
M500 | 1250 | 160 | 930 | 1 | 1750 | 160 | 715 | 2 | 2250 | 157.5 | 645 | 3 |
M600 | 1300 | 170 | 960 | 1 | 1800 | 170 | 730 | 2 | 2300 | 167.5 | 655 | 3 |
M800 | 1400 | 180 | 1040 | 1 | 1900 | 180 | 770 | 2 | 2400 | 180.0 | 680 | 3 |
Performance of Rubber Fender
Type | Design Compressive Deflection (%) | Tolerance (%) | |||||
High Reaction Force (RH) | Stand Reaction Force (RO) | Low Reaction Force (RL) | |||||
Reaction Force (R) | Energy Absorption (E) | Reaction Force (R) | Energy Absorption (E) | Reaction Force (R) | Energy Absorption (E) | ||
M300×1000L | 257 | 29.4 | 213 | 24.3 | 182.3 | 20.6 | ±10 |
M400×1000L | 341 | 53.0 | 282 | 44.1 | 242.0 | 37.2 | |
M500×1000L | 427 | 83.3 | 354 | 68.6 | 304.0 | 58.8 | |
M600×1000L | 514 | 120.0 | 425 | 100.0 | 366.0 | 84.2 | |
M800×1000L | 685 | 213.0 | 566 | 177.3 | 486.0 | 150.0 |

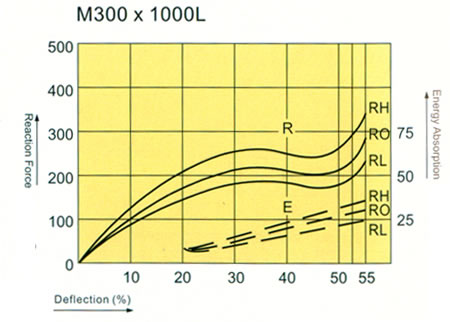

Performance Curve
Hengsheng is a rubber fender manufacturer based in China. We offer M type marine fender, semicircular rubber fender, rolling rubber fender, rubber corner packing, and a variety of engineering rubber products such as expansion joint, rubber bumper, and rubber cushion.
