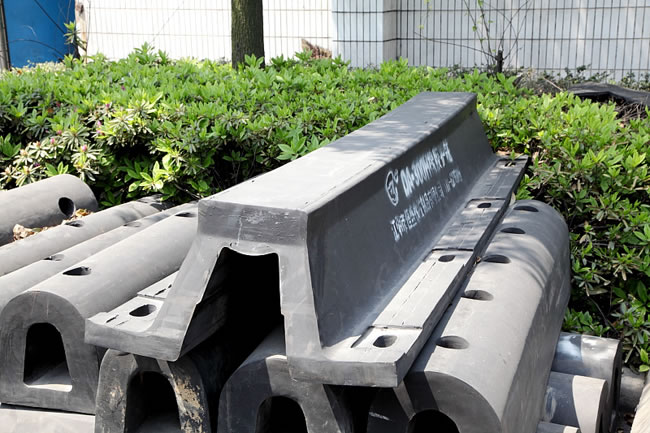

Arch Rubber Fender, DA-A Type Rubber Fender

Arch Rubber Fender, DA-A Type Rubber Fender
Feedback Form

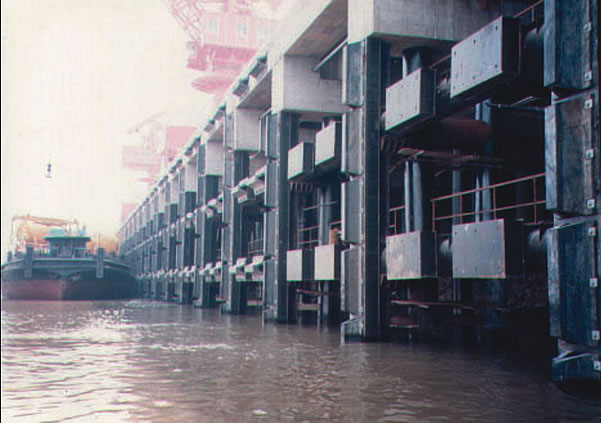

The arch rubber fender is typically mounted on a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing, thus preventing ships and docks from being damaged.

Characteristics of Arch Rubber Fender
1. The arch rubber fender offers low reaction force but high energy absorption performance.
2. With rational structure, it comes with long lifespan.
3. Although with secure installation, the fender is easy for replacement.
4. It can be mounted to all types of docks and wharf.
5. The DA-A type rubber fender is designed with a high compression deformation, 20% higher than A type and 8% higher than M type when there is no increase in counterforce. Hence, the fender offers higher energy absorption.

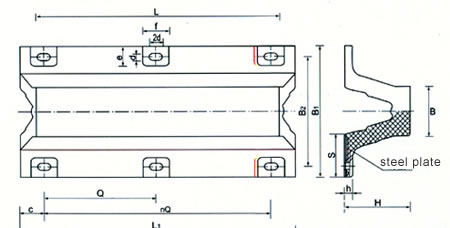

Specification

Unit: mm

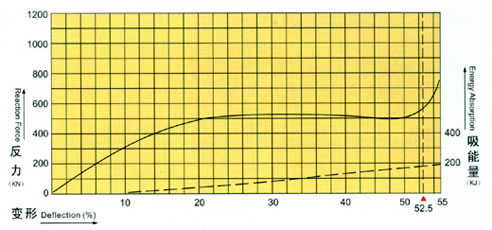

Performance Curve
Arch Rubber Fender, SA300×1000

Deformation / performance Design Compressive Deflection 50%
Reaction Force(KN)) Energy Absorption(KJ) Tolerance
Standard type 206 26 ±10%

Arch Rubber Fender, SA500×1000

Deformation / performance Design Compressive Deflection 50%
Reaction Force(KN)) Energy Absorption(KJ) Tolerance
Standard type 344 72 ±10%

Arch Rubber Fender, SA600×1000

Deformation / performance Design Compressive Deflection 50%
Reaction Force(KN)) Energy Absorption(KJ) Tolerance
Standard type 412 104 ±10%
Arch Rubber Fender, SA-800×1000
Deformation / performance Design Compressive Deflection 50%
Reaction Force(KN)) Energy Absorption(KJ) Tolerance
Standard type 550 185 ±10%

Product Performance

As an arch rubber fender manufacturer in China, Hengsheng also produces rolling rubber fender, semicircular rubber fender, hatch cover rubber seal, rubber packing, automobile sponge rubber products, and engineering rubber products.
