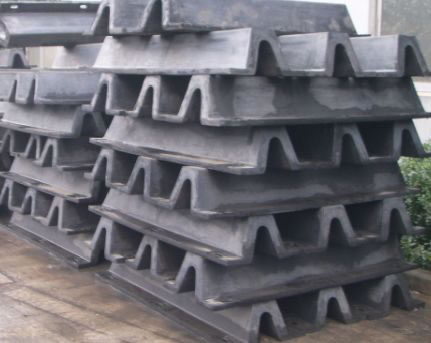

Hengsheng arch rubber fender is usually mounted to a dock or a ship, to counteract the collision force between the ship and the dock. Hence, it is an ideal solution to prevent the ship and dock from being damaged during mooring and berthing process.
Characteristics of Arch Rubber Fender
1. This V type marine rubber fender offers moderate reaction force, and high energy absorption.
2. It features secure and convenient installation.
3. It can be mounted to various docks, shipyards, and both sides of a ship.
Specification
Type | Specification | |||||||||||||
H | L | L1 | B | B1 | B2 | B3 | c | d | e | f | h | p | n | |
A300×1000 | 300 | 1000 | 1150 | 197 | 600 | 490 | 216 | 140 | 37 | 105 | 140 | 45 | 870 | 2 |
A300×1500 | 300 | 1500 | 1650 | 197 | 600 | 490 | 216 | 140 | 37 | 105 | 140 | 45 | 685 | 3 |
A300×2000 | 300 | 2000 | 2150 | 197 | 600 | 490 | 216 | 137.5 | 37 | 105 | 140 | 45 | 625 | 4 |
A400×1000 | 400 | 1000 | 1200 | 262 | 800 | 670 | 350 | 150 | 43 | 120 | 165 | 60 | 900 | 2 |
A400×1500 | 400 | 1500 | 1700 | 262 | 800 | 670 | 350 | 150 | 43 | 120 | 165 | 60 | 700 | 3 |
A400×2000 | 400 | 2000 | 2200 | 262 | 800 | 670 | 350 | 147.5 | 43 | 120 | 165 | 60 | 635 | 4 |
A500×1000 | 500 | 1000 | 1250 | 328 | 1000 | 840 | 360 | 160 | 47 | 140 | 180 | 75 | 930 | 2 |
A500×1500 | 500 | 1500 | 1750 | 328 | 1000 | 840 | 360 | 160 | 47 | 140 | 180 | 75 | 715 | 3 |
A500×2000 | 500 | 2000 | 2250 | 328 | 1000 | 840 | 360 | 157.5 | 47 | 140 | 180 | 75 | 645 | 4 |
A600×1000 | 600 | 1000 | 1300 | 393 | 1200 | 1010 | 432 | 170 | 50 | 160 | 195 | 90 | 960 | 2 |
A600×1500 | 600 | 1500 | 1800 | 393 | 1200 | 1010 | 432 | 170 | 50 | 160 | 195 | 90 | 730 | 3 |
A600×2000 | 600 | 2000 | 2300 | 393 | 1200 | 1010 | 432 | 167.5 | 50 | 160 | 195 | 90 | 655 | 4 |
A800×1000 | 800 | 1000 | 1400 | 524 | 1600 | 1340 | 576 | 180 | 68 | 260 | 270 | 120 | 1040 | 2 |
A800×1500 | 800 | 1500 | 1900 | 524 | 1600 | 1340 | 576 | 180 | 68 | 260 | 270 | 120 | 770 | 3 |
A800×2000 | 800 | 2000 | 2400 | 524 | 1600 | 1340 | 576 | 180 | 68 | 260 | 270 | 120 | 680 | 4 |
Product Performance
Type | Design Compressive Deflection (%) | Performance | ||
Reaction Force(KN) | Energy Absorption (KJ) | Tolerance (%) | ||
A300×1000 | 45 | 220.7 | 22.6 | ±10 |
A400×1000 | 294.0 | 39.2 | ||
A500×1000 | 363.0 | 61.7 | ||
A600×1000 | 431.6 | 89.3 | ||
A800×1000 | 588.6 | 157.0 |

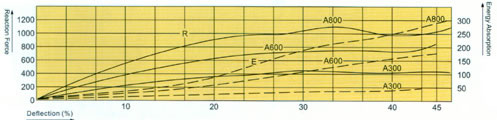

Performance Curve
Length: 2000mm
Note: We can also offer marine rubber fenders with high reaction force and low reaction force, according to customers' requirements.
Hengsheng is an arch rubber fender manufacturer in China. Our company is mainly engages in the production and marketing of a variety of rubber fenders, including our square rubber fender, tugboat rubber fender, pneumatic rubber fender, cone rubber fender, and more.
