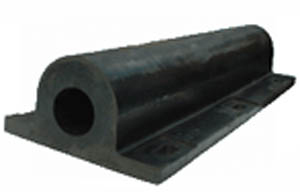

The GD type marine rubber fender is typically mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing, thus preventing ships and docks from being damaged.

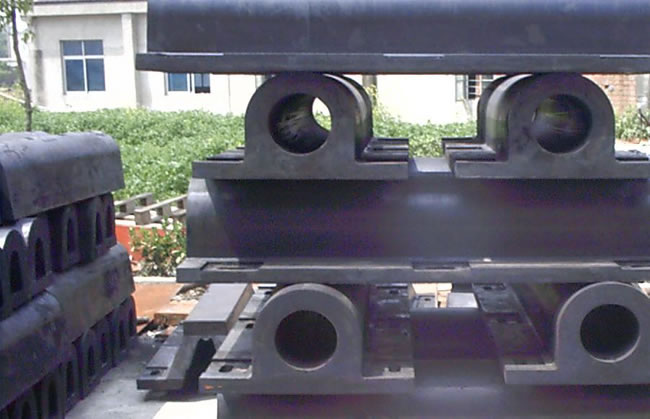

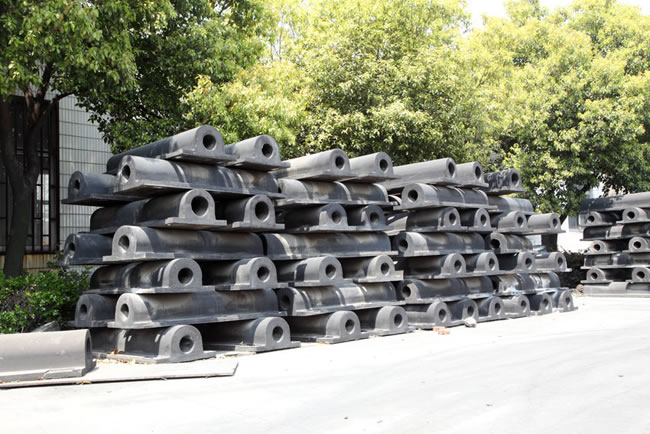

Characteristics of Wing Type Rubber Fender
1. This wing type rubber fender offers higher energy absorption performance than semicircular type ones. Customers can choose a proper type according to their specific demands.
2. The product has high strength and offers long service life.
3. It is usually used for skeleton type docks.

Specification


Unit: mm

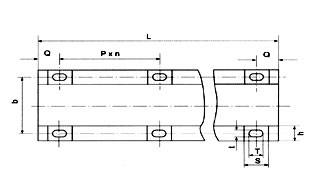

Type H B b L Q P S h T t n
GD280H×1000L 280 540 (600) 430 (490) 1000 150 700 165/170 120 82/90 41/45 1
GD280H×1500L 280 540 (600) 430 (490) 1500 150 600 165/170 120 82/90 41/45 2
GD280H×2000L 280 540 430 2000 145 570 165 120 82 41 3
GD280H×2500L 280 540 430 2500 150 550 165 120 82 41 4
GD300H×1000L 300 600 490 1000 150 700 165 120 90 45 1
G300H×1500L 300 600 490 1500 150 600 165 120 90 45 2
GD300H×2000L 300 600 490 2000 145 570 165 120 90 45 3
GD300H×2500L 300 600 490 2500 150 550 165 120 90 45 4

We can also design and manufacture non-standard wing type rubber fender according to customers' demands.

Performance

Type Design Compressive Deflection (%) Performance
Reaction Force(KN) Energy Absorption(KJ) Tolerance%
GD280H×1000L 50 371.0 14.0 ±10
GD280H×1500L 557.0 21.0
GD280H×2000L 742.0 28.0
GD280H×2500L 927.5 35.0
GD300H×1000L 441.0 17.6
G300H×1500L 661.5 26.4
GD300H×2000L 882.0 35.2
GD300H×2500L 1102.5 44.0

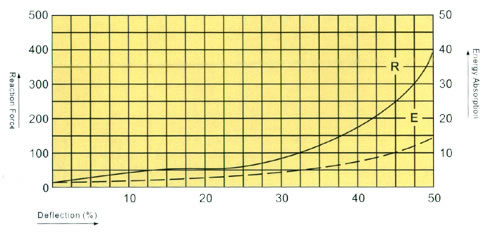

Performance Curve
Wing Type Rubber Fender, GD280H×1000L

Deformation / Performance Design Compressive Deflection 50%
Reaction Force(KN) Energy Absorption(KJ) Tolerance
Standard Type 371 14.0 ±10%

Wing Type Rubber Fender, GD300H×1500L

Deformation / performance Design Compressive Deflection 50%
Reaction Force(KN) Energy Absorption(KJ) Tolerance
Standard Type 661.5 26.5 ±10%

Installation

Specification\Size\Name ①Bolt ②Cushion ③Embedded Nut
D J S H m n N U V Q P R d e a b L T t G
GD280H M36 95 80 23 119 126 22 6 43 58 62 25 M36 50 85 125 360 9 10 85
GD300H M39 110 90 26 119 126 22 6 43 58 62 25 M39 50 85 125 390 9 10 110

Hengsheng is a wing type rubber fender manufacturer in China. In addition, we provide cylindrical rubber fender, shipside vertical rubber fender, bridge rubber bumper, shipping facilities rubber sealed product, as well as automobile PE, EVA, polyester, sponge rubber, etc.
