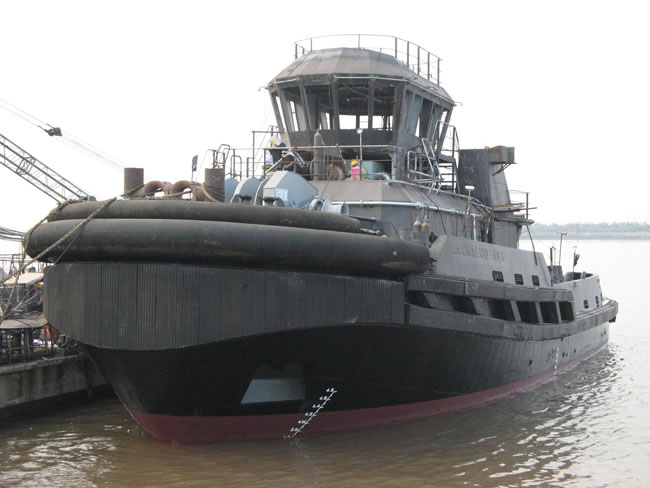

A tugboat rubber fender is typically mounted on the bow, stern, and both sides of a towboat or push boat. It can effectively counterpart the impact force between the ship and the dock and that between ships. Hence, it is ideal for preventing boats as well as dock, etc. from being damaged by the impact force.
Characteristics of Tugboat Rubber Fender
1. This ship rubber fender is ideal for various towboat and push boat protection.
2. It can be mounted onto dock, and bow, stern and both sides of a towboat or push boat, thus allowing the boats to perform towing and pushing in safe conditions.
3. Designed in an integral structure, the rubber fender offers reliable performance and is easy for installation.
Specification
Unit: mm
Type | Inner Dia. (d) | Outer Dia. (D) | Length of product (L) | Note | |
D | D' | ||||
Φ200×Φ100×L | 100 | 200 | 500-20000 | Straight Type | |
Φ300×Φ150×L | 150 | 300 | |||
Φ400×Φ200×L | 200 | 400 | |||
Φ500×Φ220×L | 220 | 500 | |||
Φ500×Φ250×L | 250 | 500 | |||
Φ600×Φ300×L | 300 | 600 | |||
Φ700×Φ350×L | 350 | 700 | |||
Φ750×Φ350×L | 350 | 750 | |||
Φ800×Φ400×L | 400 | 800 | |||
Φ400×Φ300×Φ200×L | 200 | 400 | 300 | Cone Type | |
Φ500×Φ400×Φ250×L | 250 | 500 | 400 | ||
Φ600×Φ450×Φ250×L | 250 | 600 | 450 | ||
Φ700×Φ500×Φ300×L | 300 | 700 | 500 | ||
Φ750×Φ450×Φ250×L | 250 | 750 | 450 | ||
Φ760×Φ500×Φ300×L | 300 | 760 | 500 | ||
Φ800×Φ600×Φ400×L | 400 | 800 | 600 |
Note

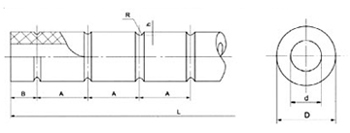

1. In the diagram, the dimension of A and B is determined by clients. R and H is available in two types: R15, H30 and R25, H50.
2. We can also design and manufacture tugboat rubber fender according to customers' demands.
3. For installation convenience, we can also offer tailor-made rubber stoppers to customers.
Hengsheng is a tugboat rubber fender manufacturer and supplier in China. Apart from ship rubber fender, we also provide arch rubber fender, supper cell rubber fender, rubber seal, rubber waterstop, and rubber plastic products for automobile, train, air conditioner.
