This arch rubber fender is usually mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing, thus preventing ships and docks from being damaged.
Advantages of Arch Rubber Fender
1. The built-in steel plate in its head and the impingement plate at its top part greatly reduces the surface force acting across the vessel body and also reduces friction coefficient, thus better protecting the vessel.
2. DA-B type rubber fender is designed with the same dimension and fittings as DA-A type.
3. According to customers' demands, we can make a DA type rubber fender into a LMD type by making some dimensional changes. The both types come with the same main structure and mechanical property. LMD-A and LMD-B type are available.

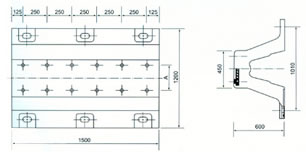

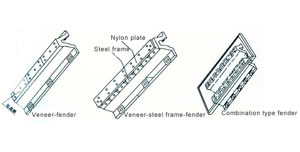

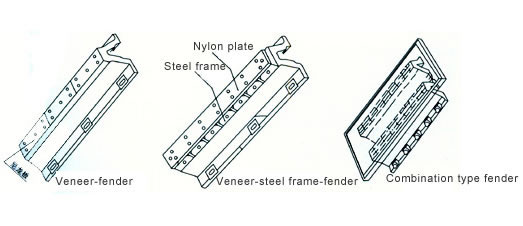

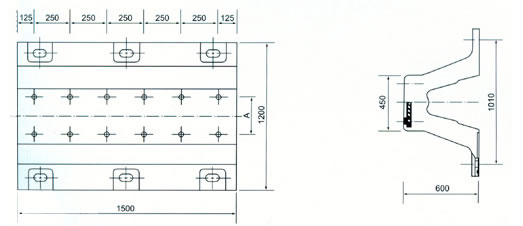

Composition

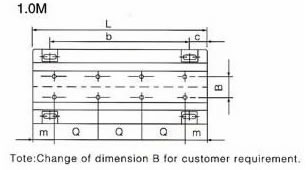

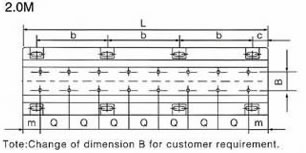

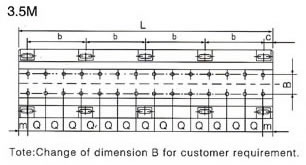

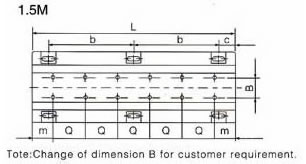

Length and Installation Dimension of DA-B type Rubber Fender
Size | b(mm) | c(mm) | Q(mm) | m(mm) | L(mm) |
SA-B300H | 750 | 125 | 250 | 125 | 1000 |
SA-B400H | 700 | 150 | 250 | 125 | 1000 |
SA-B500H | 650 | 175 | 250 | 125 | 1000 |
SA-B600H | 600 | 200 | 250 | 125 | 1000 |
SA-B800H | 500 | 250 | 250 | 125 | 1000 |
Size | b(mm) | c(mm) | Q(mm) | m(mm) | L(mm) |
SA-B300H | 625 | 125 | 250 | 125 | 1500 |
SA-B400H | 600 | 150 | 250 | 125 | 1500 |
SA-B500H | 550 | 200 | 250 | 125 | 1500 |
SA-B600H | 550 | 200 | 250 | 125 | 1500 |
SA-B800H | 500 | 250 | 250 | 125 | 1500 |
Size | b(mm) | c(mm) | Q(mm) | m(mm) | L(mm) |
SA-B300H | 580 | 130 | 250 | 125 | 2000 |
SA-B400H | 560 | 160 | 250 | 125 | 2000 |
SA-B500H | 540 | 190 | 250 | 125 | 2000 |
SA-B600H | 530 | 205 | 250 | 125 | 2000 |
SA-B800H | 490 | 265 | 250 | 125 | 2000 |
Size | b(mm) | c(mm) | Q(mm) | m(mm) | L(mm) |
SA-B300H | 750 | 125 | 250 | 125 | 2500 |
SA-B400H | 730 | 155 | 250 | 125 | 2500 |
SA-B500H | 710 | 185 | 250 | 125 | 2500 |
SA-B600H | 700 | 200 | 250 | 125 | 2500 |
SA-B800H | 660 | 260 | 250 | 125 | 2500 |
Hengsheng is a professional arch rubber fender manufacturer based in China. In addition to rubber fender, we offer shipping facilities rubber sealed product, hatch cover rubber seal, rubber packing, engineering rubber product, and rubber plastic products for automobile, train, air conditioner.
